Products

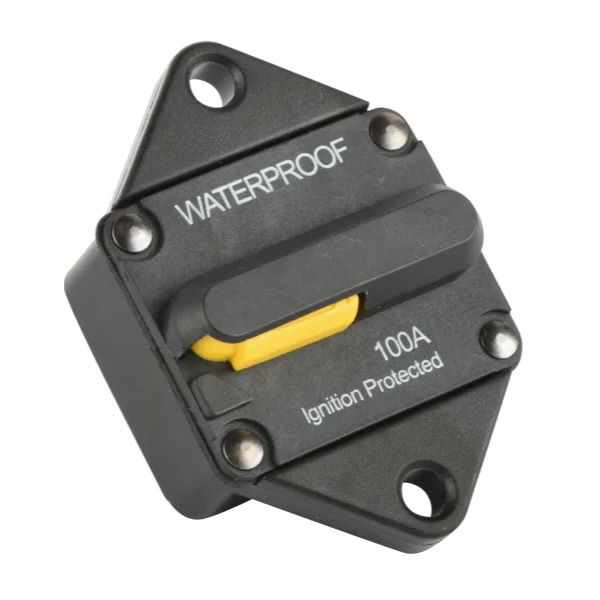

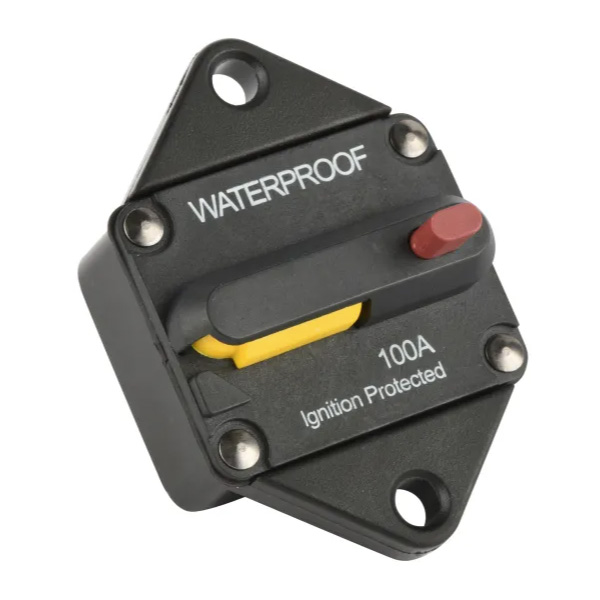

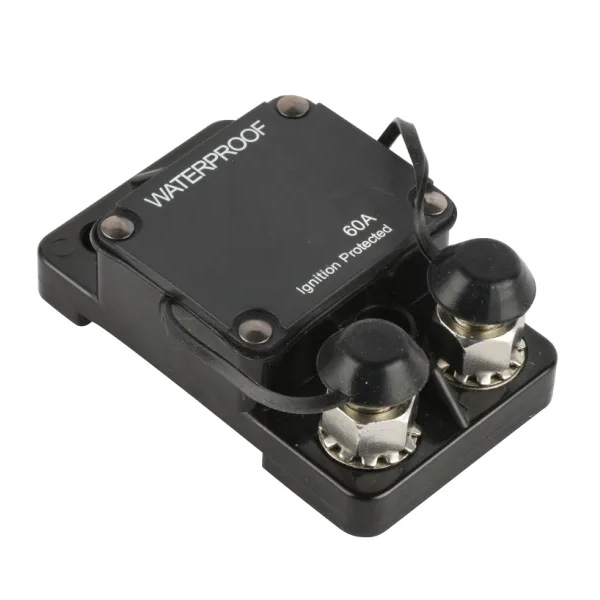

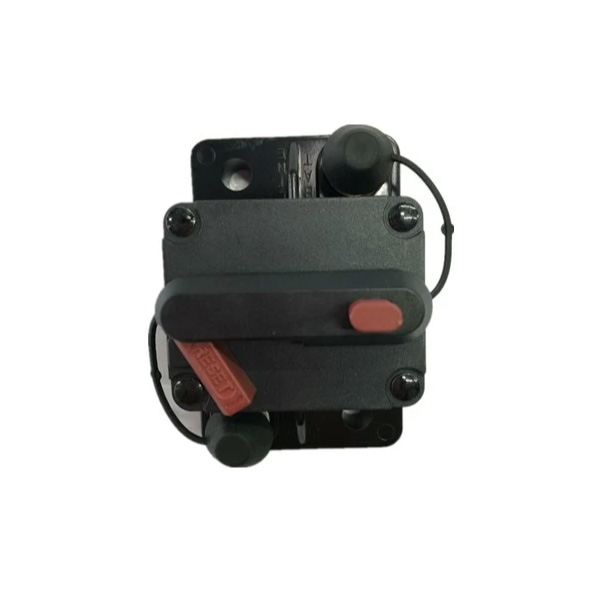

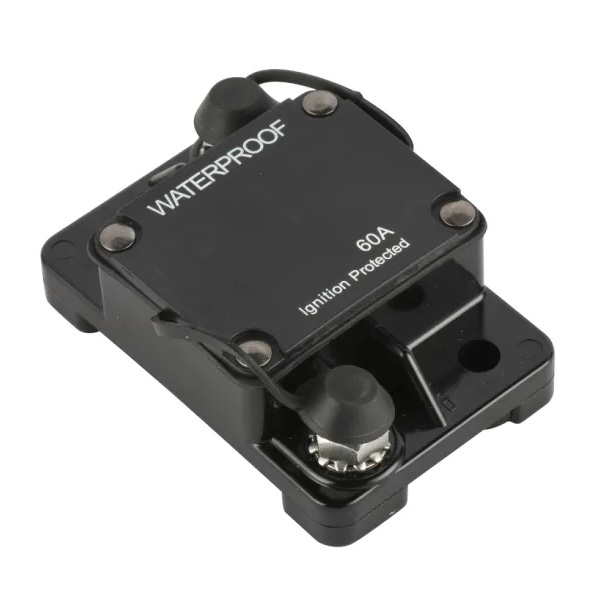

Bussmann, High AMP, Auto, Manual& Switchable Reset, Thermal Overload Protector Circuit Breaker

Details

Application: Typically used in auxiliary and accessory circuits in truck, bus, RVs and marine systems.
Rating: 30-150A, 30VDC
Operating Temperature Rating: -40C to +85c
Storage Temperature Rating: -30F(-34c) to +300f(149c)
Materials: Black UL-rated 94V0 thrmoset platic. Thermoplastic elastomer stud insulators are provided on covered units with F-systle (surface-mount) bases.
Marking: Standard marking includes am ratings and part numbers. Custom markings also available.
Terminatin: 1/4-28 threaded studs
Torque rating: 50 in-lbs(5.6n. M) max
Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs(5.6 N. M) max. Thread insert option has a max torque of 25 in-lbs(2.8N. M)
